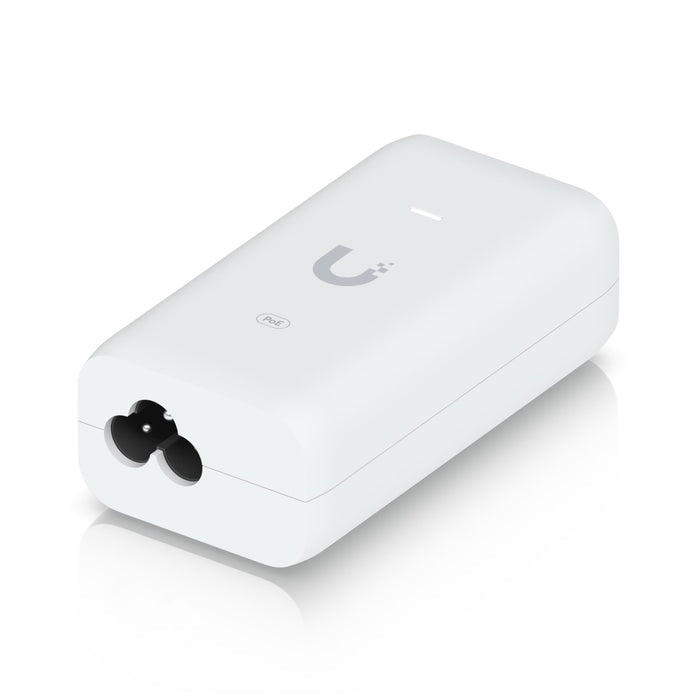

Ubiquiti U-POE Adapter 48V 15W Gigabit LAN Power Supply for UniFi Devices

Description:

The Ubiquiti PoE 802.11af Adapter is designed to power UniFi PoE devices while reducing dependency on PoE switch power and providing a reliable Gigabit LAN connection. It delivers up to 15W of PoE output and includes built-in surge, peak pulse, and overcurrent protection for safe and stable operation.

Features:

• Delivers up to 15W of PoE
• Surge, peak pulse, and overcurrent protection
• RJ45 data input, AC cable with earth ground, and PoE output
• LED indicator for status monitoring


Specifications:

• Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
• Weight: 100 g (3.5 oz)
• Power Cable: Included
• Output Voltage: 48V DC @ 0.32A
• Rated Voltage: 100-240V AC at 50/60Hz
• Gigabit LAN Port: Yes
• 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (-)
• AC Connector: IEC-320 C6
• Clamping Protection: 11V data, 60V power
• Data In / PoE: RJ45 shielded socket
• Input Current: 500mA max
• Inrush Current: Less than 100A peak at 25°C
• Efficiency: 84.25% or higher
• Switching Frequency: 65 kHz
• Output Ripple: 200mV pp
• Line Regulation: 3% or less
• Load Regulation: 5% or less
• Max Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Response Time: Less than 1 ns
• Shunt Capacitance: Less than 5 pF data
• Surge Protection: Difference and common mode
• Ambient Storage Temperature: -30 to 70°C (-22 to 158°F)
• Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, UL, CCC
